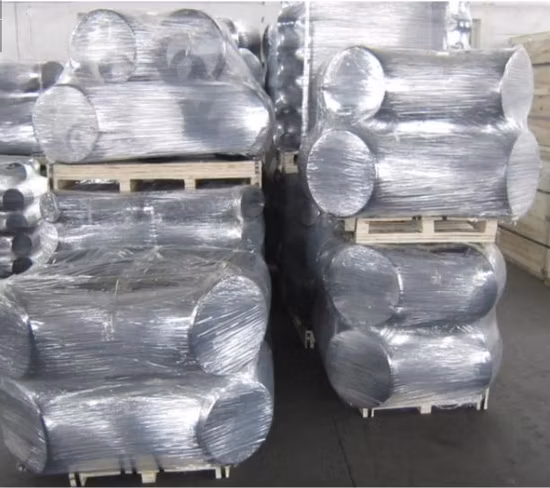

Carbon Steel ASTM A234 Wpb 180 Degree Elbow, ANSI B16.9 Lr Butt Weld (BW) Elbow Pipe Fittings

Carbon Steel ASTM A234 Wpb 180 Degree Elbow, ANSI B16.9 Lr Butt Weld (BW) Elbow Pipe Fittings

Product Description l Concentric Reducer: Dimension (mm) Eccentric Reducer: Dimension (mm)
Basic Info
Model NO. rec-000033
Thickness Sch5-Sch160, Std, Xs, Xxs or Made by Your Demand
Delivery Most Sizes in-Stock for Immediate Delivery
Inspection in-House or The Third Party
Transport Package Wood Box or as Per Requirement
Specification DN20-DN2000 mm
Trademark HTXD
Origin Hebei China
HS Code 73079100
Production Capacity 500000 Tons/Year
Product Description

l
Reducer TypeSeamless reducer; Welded reducer;
Concentric reducer; Eccentric reducer;
butt welding reducer; forged reducer;
forging reducer; welding reducer;
SizeOD.1/2'' ~ 48''(Seamless); 16'' ~96''(welded); DN15-DN1200
WTK.Sch10SCH20,SCH30,STD,SCH40,SCH60,XS,SCH80,SCH100,SCH120,SCH140,SCH160, XXS
StandardASME B16.9-2007
ANSI/ASME B16.11
ASME B16.25-2007
ASME B16.5-2007
EN10253-1-1999 EN10253-2-2007 EN10253-3-2008 EN10253-4-2008
DIN2605-1-1992 DIN2605-2-1995
JIS B2311-2009 JIS B2312-2009 JIS B2313-2009
GB/T12459-2005 GB/T13401-2005 GB/T10752-2005
SH/T3408-1996 SH/T3409-1996
SY/T0609-2006 SY/T0518-2002 SY/T0510-1998
DL/T695-1999 GD2000 GD87-1101
HG/T21635-1987 HG/T21631-1990 ,
MSS SP-43, MSS SP-95, MSS SP-75, MSS SP-79;
ISO 3419,ISO 5251,DIN 2616
MaterialCarbon steelASTM A234 WPB,
ASTM A420 WPL6, WPL3;
ASTM A105 WPB;
ASTM A106;
ASTM A350 LF2,
DIN St37, St45.8, St52.4,St.35.8,St.35.8
ASTM A333 GR.6,
ASTM A860 WPHY 70, WPHY 65, WPHY 60, WPHY 52,WPHY 46,WPHY 42,
API 5L GRB, X60, X65, X42,X52,
Stainless steelASTM A403 WP304, A403 WP304L, A403 WP316, A403 WP316L, A403 WP321
ASTM A182 F 304, 304L,316, 316L,904L
Alloy steelASTM A234 WP12, A234 WP11, A234 WP22, A234 WP5, A234 WP9
A420 WPL8, A420 WPL9
ASTM A335 P5, P9, P11, P12, P22, P91
ASTM A213
ASTM A182 F5,F11,F22,F91
SurfaceBlack painting, varnish paint, anti rust oil, hot galvanized, cold galvanized, 3PE, etc.
Manufacturing processPush, Press, Forge, Cast, etc.
Connectionwelding
Technical Welded, forged
MOQ10 pieces
PackingWooden cases, pallets, nylon bags or according to the customers' requirements
Delivery time7-35 days after your advance payment
Payment termsL/C, T/T, D/A, etc.
ShipmentFOB Tianjin, CIF, CFR, etc
RemarksOther materials and drawings are available.
Capacity1000000tons/year
Advantages1. Reasonable price with excellent quality
2. Abundant stock and prompt delivery
3. Rich supply and export experience, sincere service
4. Reliable forwarder, 2-hour away from port.
Main clients Turkey, Italy, France, Spain, South Africa, Mexico, Dubai, Iran, Syria, Singapore, Vietnam, Austria, USA, Canada, Mexico, Korea, Thailand, India, Bulgaria, Russia and so on

Concentric Reducer:

Dimension (mm)
Nominal DiameterOutside DiameterEnd to End
D1*D2
DNNPSSeries ASeries BH
20×153/4×1/226.9×21.325×1838
20×103/4×3/826.9×17.325×1438
25×201×3/433.7×26.932×2551
25×151×1/233.7×21.332×1851
32×251.1/4×142.4×33.738×3251
32×201.1/4×3/442.4×26.938×2551
32×151.1/4×1/242.4×21.338×1851
40×321.1/2×1.1/448.3×42.445×3864
40×251.1/2×148.3×33.745×3264
40×201.1/2×3/448.3×26.945×2564
40×151.1/2×1/248.3×21.345×1864
50×402×1.1/260.3×48.357×4576
50×322×1.1/460.3×42.457×3876
50×252×160.3×33.757×3276
50×202×3/460.3×26.957×2576
65×502.1/2×273.0×60.376×5789
65×402.1/2×1.1/273.0×48.376×4589
65×322.1/2×1.1/473.0×42.476×3889
65×252.1/2×173.0×33.776×3289
80×653×2.1/288.9×73.089×7689
80×503×288.9×60.389×5789
80×403×1.1/288.9×48.389×4589

Eccentric Reducer:



Dimension (mm)
Nominal DiameterOutside DiameterEnd to End
D1*D2
DNNPSSeries ASeries BH
20×153/4×1/226.9×21.325×1838
20×103/4×3/826.9×17.325×1438
25×201×3/433.7×26.932×2551
25×151×1/233.7×21.332×1851
32×251.1/4×142.4×33.738×3251
32×201.1/4×3/442.4×26.938×2551
32×151.1/4×1/242.4×21.338×1851
40×321.1/2×1.1/448.3×42.445×3864
40×251.1/2×148.3×33.745×3264
40×201.1/2×3/448.3×26.945×2564
40×151.1/2×1/248.3×21.345×1864
50×402×1.1/260.3×48.357×4576
50×322×1.1/460.3×42.457×3876
50×252×160.3×33.757×3276
50×202×3/460.3×26.957×2576
65×502.1/2×273.0×60.376×5789
65×402.1/2×1.1/273.0×48.376×4589
65×322.1/2×1.1/473.0×42.476×3889
65×252.1/2×173.0×33.776×3289
80×653×2.1/288.9×73.089×7689
80×503×288.9×60.389×5789
80×403×1.1/288.9×48.389×4589
80×323×1.1/488.9×42.489×3889
90×803.1/2×3101.6×88.9-102
90×653.1/2×2.1/2101.6×73.0-102
90×503.1/2×2101.6×60.3-102
90×403.1/2×1.1/2101.6×48.3-102
90×323.1/2×1.1/4101.6×42.4-102
100×904×3.1/2114.3×101.6-102
100×804×3114.3×88.9108×89102
100×654×2.1/2114.3×73.0108×76102
100×504×2114.3×60.3108×57102
100×404×1.1/2114.3×48.3108×45102
